EQUIPMENT
Wheels and lubrication units for industrial cars
Wheels and lubrication units equip kiln cars, dryer cars and transfer cars. The wheels use forged steel with hardened treads and flanges; automatic lubrication operates as the car passes.
Wheel diameters
200, 240, 300 and 400 mm
Material
Forged steel
Treatment
Hardened tread and flanges
Applications
Kiln cars, dryer cars and transfer cars
Optional tyre
Stainless steel depending on application
Wheels and lubrication for industrial cars

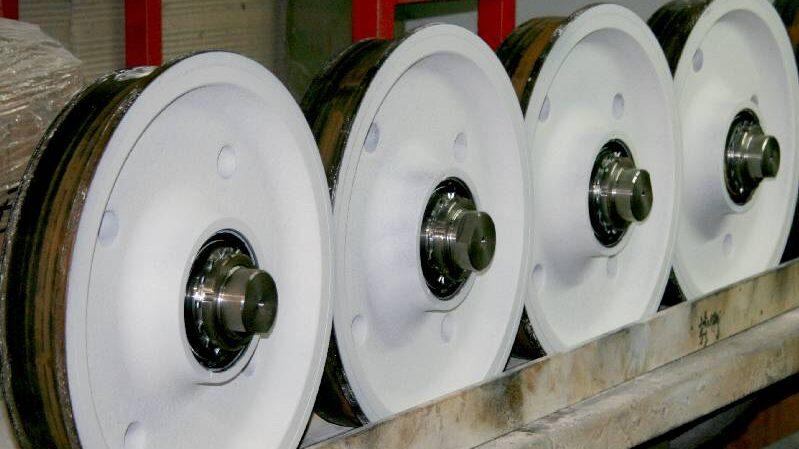

The range includes 200, 240, 300 and 400 mm wheels. Selection depends on the application and exposure conditions in the heavy clay line.

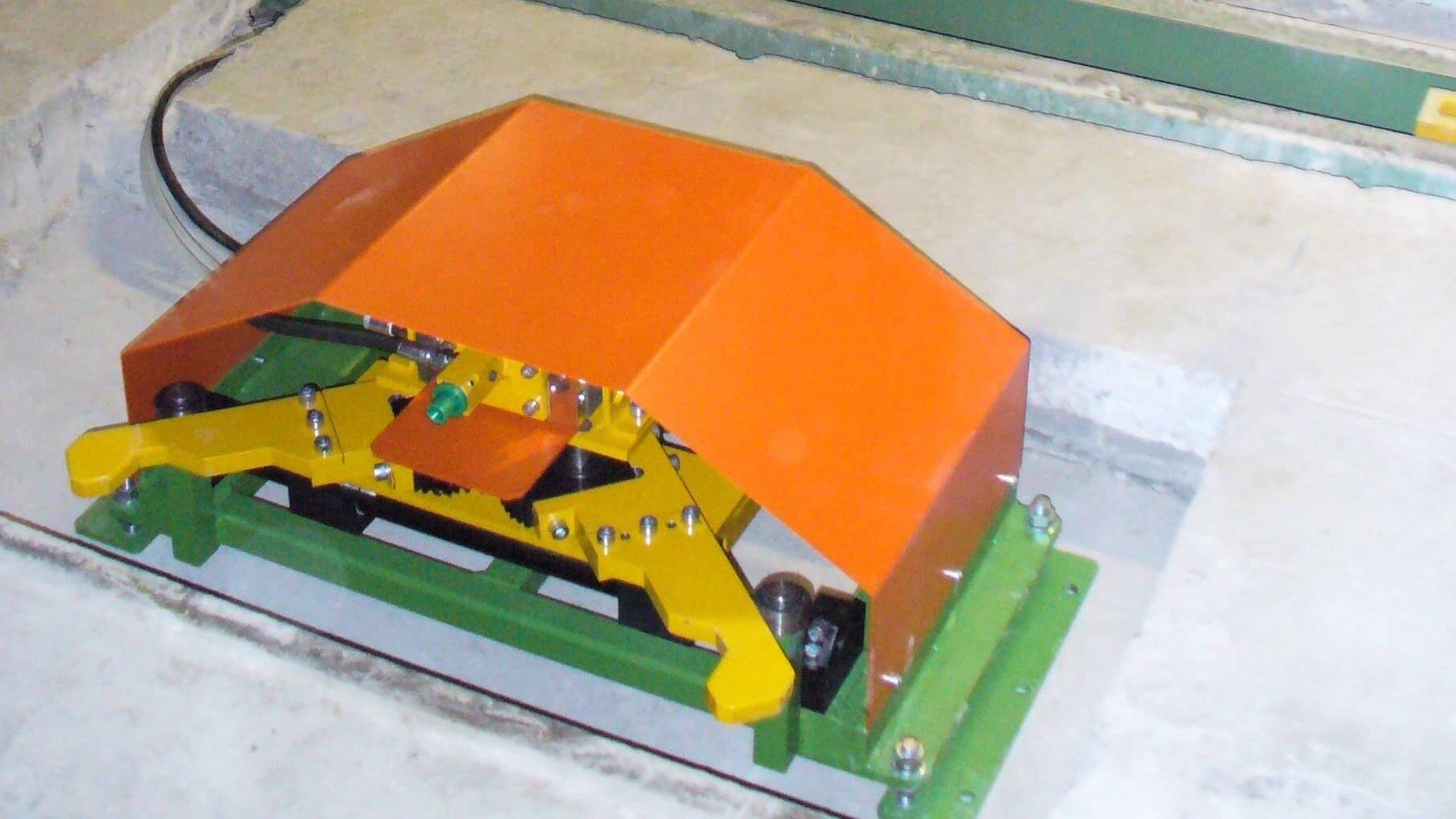

The automatic lubrication unit centres on the wheel and controls lubrication pressure. It is triggered by the passing car so grease is applied when needed.
Component features
Optional bearing
Graphite depending on application
Lubrication
Triggered when the kiln car passes
Centring
Automatic on the wheel
Control
Lubrication pressure
Stainless steel tyres or graphite bearings can be offered for certain applications. These options are selected for the station’s temperature and environmental conditions.
The lubrication unit is integrated into the car route. Centring and pressure control regulate grease application; they do not replace wheel and bearing maintenance.
Used in these solutions
Renovation of heavy clay equipment
FIMEC SH refurbishes equipment on brick and roof tile production lines. Work covers mechanical systems, dryer ventilation and thermal systems, as well as electrical installations, wiring and automation.
Production lines for the heavy clay industry
FIMEC SH integrates cutting and handling equipment into brick and roof tile production lines. The equipment feeds dryers, loads and moves kiln cars, then unloads fired products for pack formation.
